â„–34406[Quote]
Probably a old capacitor or CCFL lamp failed or the inverters that drive the CCFL or the transformer
â„–34435[Quote]
Not to be a demoralizing faggot but that looks really complicated and difficult to DIY
â„–34443[Quote]
Idk geg but i promise someone here knows
â„–34445[Quote]
Test the voltages off the PSU first OP
â„–34453[Quote]
>>34406i asked an AI and it said something similar but it didnt actually help me, so i posted it here
>>34435yeah it is
>>34445How can i do that?
I'll post this on more tech related places on the internet and see if i can get help from there
â„–34454[Quote]
>>34453>How can i do that?Multimeter across the output pins
â„–34468[Quote]
up
â„–34485[Quote]
>/tech/ doing repair
kino
â„–34488[Quote]
The "soot" is likely corona stain, which is fairly normal on the high voltage side of a board that old. It's not from burning, it's because the voltage causes particulate in the air to attract to certain areas and create a stain. Same thing you see on spark plugs.
I think you should re-assemble it, make sure nothing is shorted anywhere, plug it in, try to turn it on, and carefully measure if voltage is coming out of that board. It's a power supply board. Be very careful around those giant capacitors, they are dangerous
â„–34491[Quote]
OP did you abandon the thread or did you already electrocute yourself
â„–34521[Quote]
>>34454i dont have a multimeter, I'll buy one since i feel like it will be useful in general
>>34487the monitor has been unplugged for several weeks so its fine (and i touched them before this thread and i didnt die so its ok geg)
>>34488I dont wanna try turning it on because it will probably spark again
>>34490I dont, it has been completely unplugged since the incident since i dont wanna risk damaging it further in case there is a short circuit
I'm kinda busy rn but i'll try all of this in a few days, thanks for the advice.
â„–34545[Quote]
>>34521Yeah a multimeter is an incredibly useful tool, I can't believe more people don't have them. The AN8008 is the budget beginner multimeter to buy right now
â„–34714[Quote]
>>34391 (OP)I decided to reverse image search OP's picrel and I found his Reddit account. It is quite disturbing.
PLEASE DO NOT INTERACT WITH THIS WEIRDO AND DONT GIVE ADVICEFirst of all, his most liked comment contains a thumbnail joking about 'ly. He goes on to defend him by saying that he's "gemmy" and actually it's all irony whilst also advocating for HOSTILE splinters. (This is all you need to know about this, let's not talk anymore about him…)
He is turkish by the way.
He frequents many soyreddit colonies and even uses their lingo. Tuff mango phonk and rapeson. All of them. He regularly talks to the local tranny users there and even converses with them.
Remember that he's turkish? He even made a post advocating for squatting toilets since he has digestion issues, GEG. If you glue it all together you get this image.
>EXTREMELY SWARTHY turkNIGGER>shits everyday by squatting down>doesn't wipe since he is a muslim>even posted his uncleaned shit encrusted toilet-hole on Reddit>unironically posts on Reddit and even attention whores for karma>uses 'oyspeak everywhere for updoots, thus making him sound like a retard>100% a fail troll, makes shitty "jokes" about topics which are serious>frequents reddit soy colonies>hides being an offsiter>he advocates for transgenderism and faggotry in many posts>he is also a POWER SCALER and debates about SNCA with cacas>he also participates in useless SNCA reddit nigger wars Please, OP, explain this. Why are you like this?
â„–34739[Quote]
>>34714>AloggingAlso what is 'ly anyway
â„–34742[Quote]
>>34739I think he means loli? I'm not sure
â„–34753[Quote]
>>34739I thnk he's talking about goonclown
â„–34880[Quote]
>>34714marge i think you misunderstood
>thumbnail joking about scullyhere is the thumbnail for context, its made by a soytuber, and its a ridicule of those "worse then hitler/epstein??!" clickbaits
>called scully "gemmy"i called the video gemmy, which isnt a failtroll, and i called it gemmy due to the intro which was a ~2 minute long sequence of 1337 leet hax0r known as snarky snappy communicvating with agent nophono, and nowhere in the video did the dude praise or even talk about scully.
>hostile splinterhe's talking about the swede website (the one that gets censored on here)
>TVRKARYANwe wuz aryan first ev&oe
>Uses plebbit coloniesim a nusoi, sorry man kill me ig
>doesnt wipemarge i wipe and im not muslim
>posted his own toiletthat was a random pic i got off reddit
>attention whores for karmamarge?
>sounds like a retardev&oe being retarded is aryan in tvrkey
>advocates for transgenderism and faggotryi never did this
>power scaleri made a joke post about where nophono would scale mate no way you thought i was serious on that
>makes light of serious topicswhat i did was literally the same as making a slopjak and making him say ">im a pedo nigger warsaws rapist of the year award nigger shitskin nigger nigger" and that is clearly not advocating for pedophilia
i think you just took some things way to serious man
â„–34882[Quote]
>>34880You're a Turkish soy colony redditor. That alone makes me hate you.
â„–34883[Quote]
>>34882ok ig
hope you have a way to let your anger out in a clean way and have a good day
â„–34887[Quote]
>>34882reppeying again because im an obsessed gringo o algo
i mean from your reppey you got 2 issues which me which are:
1: im turkish (not much i can do to change that geg)
2: i use plebbit soy colonies
now the 2nd one is interesting, because i usually dont post on here but i like the soysphere and contributing gems to it, and since im not welcome here, i thought "why not contribute by posting on other websites and splinters"
i mean that's my line of reasoning at least
and the only social media platform i use is plebbit so if i stop using that, ill just stop interacting with the soysphere all together which is a net loss for both of us i think
â„–34888[Quote]
why spend time fixing shitel laptop doe. like other turkish manifucturers (casper etc.) its probably shit, BIOS is locked behind paywall and will probably burn because the engineer from Rize used shitty materials to design it to cut production costs
â„–34889[Quote]
>>34888its a monitor
though you are right its utter shit and is cheaper to buy a new one, im trying to fix it as a learning oppurtunity
I started learning C recently but i wanted to learn how electricity/soldering and all these hardware things work in deeper level as well, thats why im trying to repair this, like an educational challenge
â„–34890[Quote]
>>34889If thats the goal wouldnt buying a more modern laptop to fix be a better choice? (I am talking about 2012-2020 modern). There are a lot of broken down old PCs on sahibinden for 1000-2000tls
â„–34899[Quote]
>>34890arent those broken due to the failures inside the chips? so you would need to change the chips
â„–34908[Quote]
>>34889Self-improvementCHAD, it's a good skill to have, I get a lot of mileage out of it. Lots of people are good at mechanics, few are good at electronics
â„–34966[Quote]

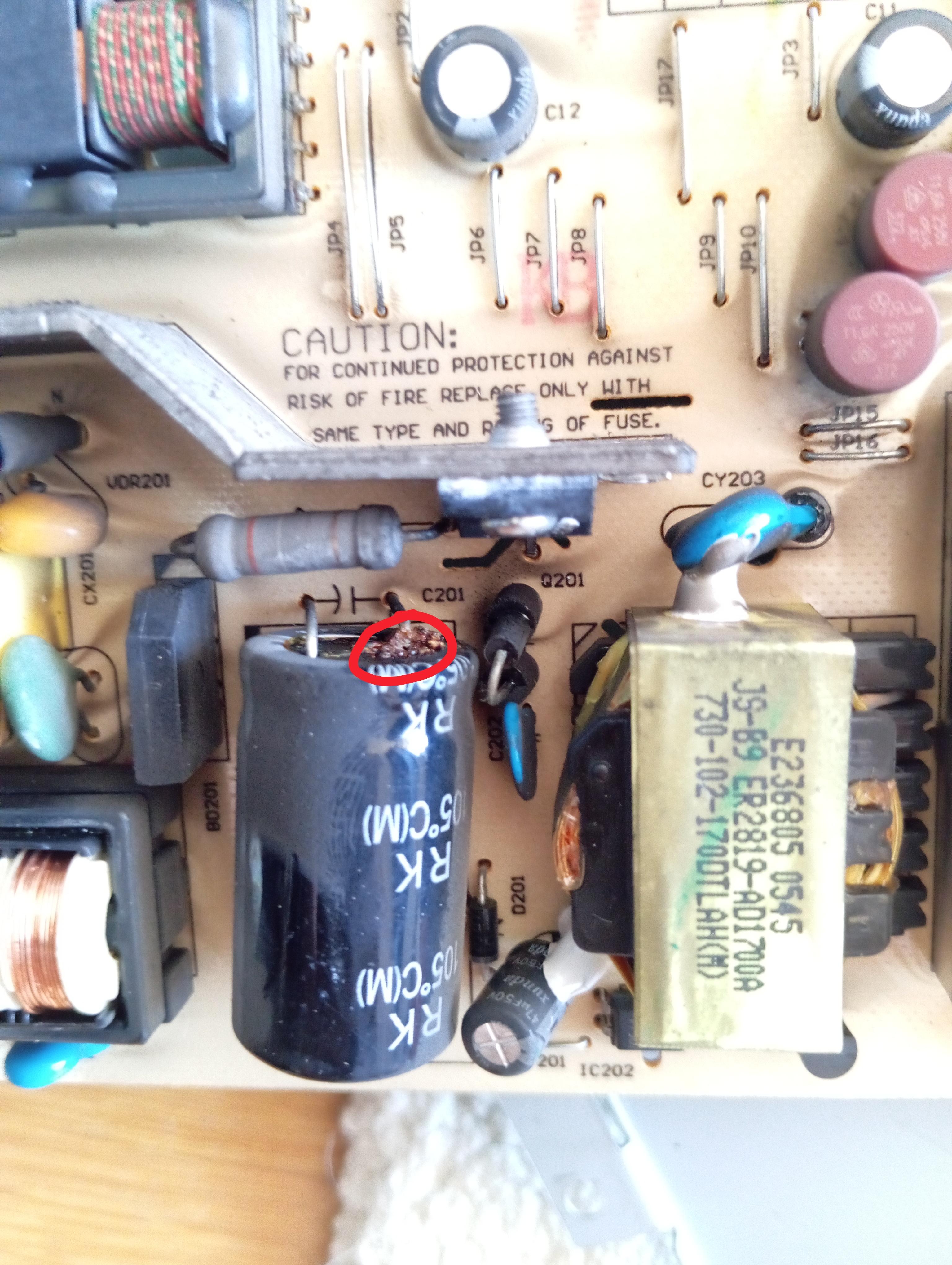

>>34907thanks for the tip, im justr afraid that other components might have failed as well, and i also dont understand why the bottom of the capacitor blew up instead of the top
â„–35003[Quote]
>>34966Why the bottom blew up: That looks like a failure due to age and corrosion rather than overvolting and boiling the electrolyte, which would have burst the top of the cap by design. Probably some stuff corroded away on the bottom and the electrolyte evaporated away o algo.
If you want to be positive about failure of other stuff downstream from that capacitor rather than doing guesswork, you'd basically have to get a circuit diagram and analyze it and trace around testing components adjacent to that system. With some experience, you can kind of do this on instinct most of the time. You aren't there yet. You can probably find some cheap kits to build your own switched mode power supply, which would be good soldering practice and also a good way to learn the basic components involved in this type of circuit and some theory as to how it works. And how to read a circuit diagram.
Since you're looking to educate yourself, I'd try that. Otherwise I'd replace that capacitor, cross my fingers, and send it. If that capacitor failed short (the bad way) it would have probably thrown the circuit breaker of the outlet it was plugged into. Plugging it in again with a healthy capacitor in that spot most likely won't damage anything that wasn't already damaged.
â„–35004[Quote]

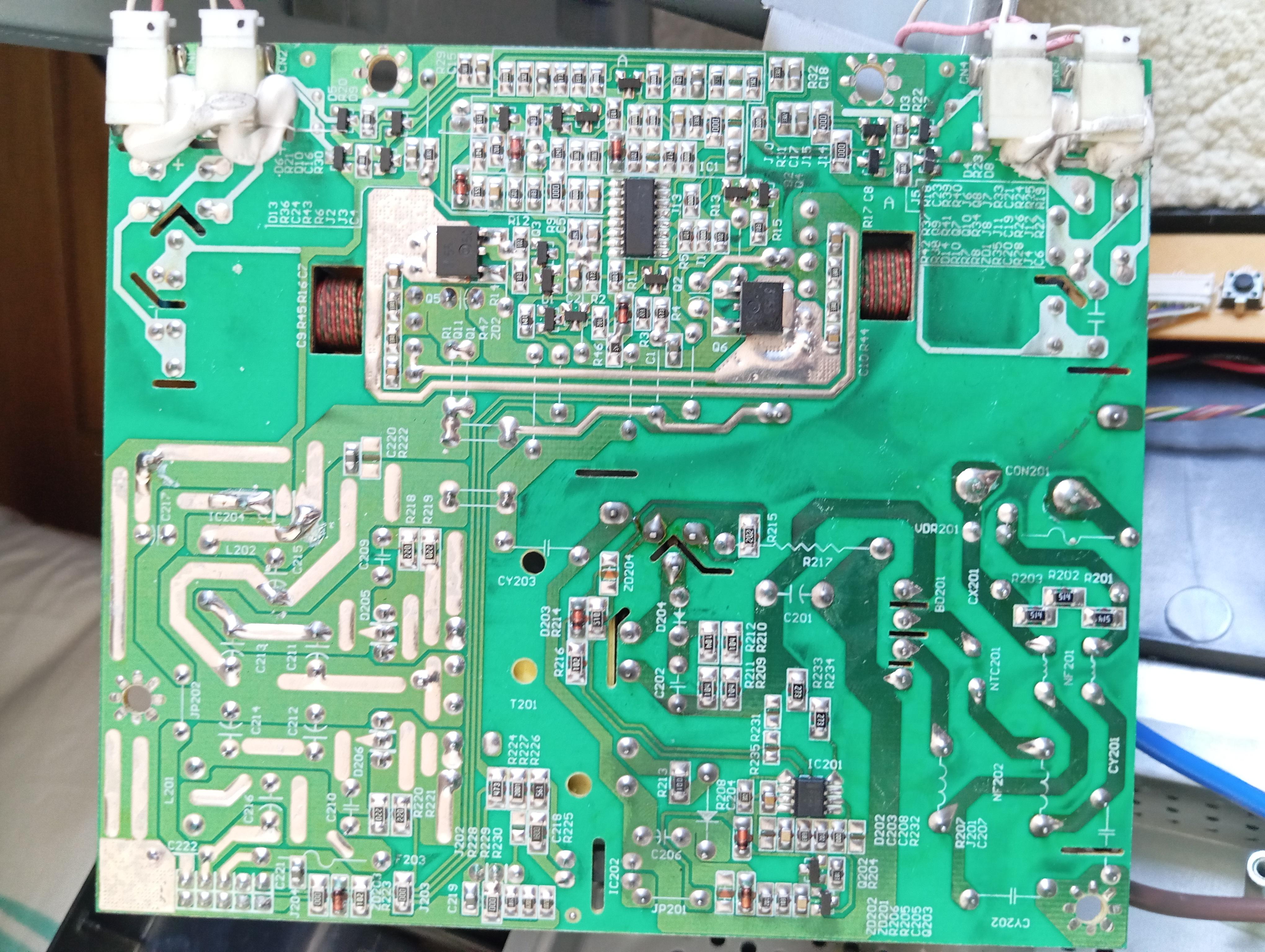

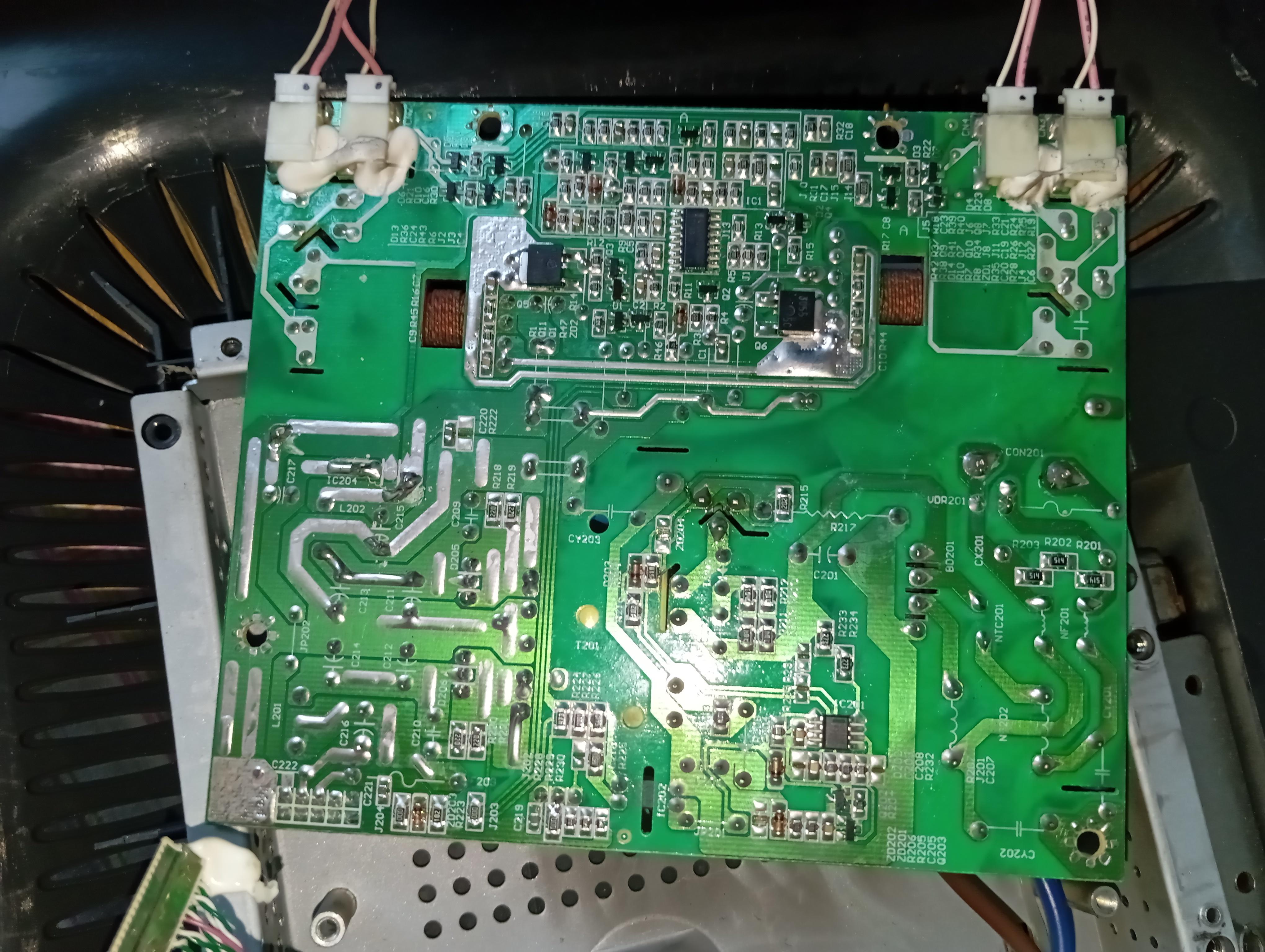

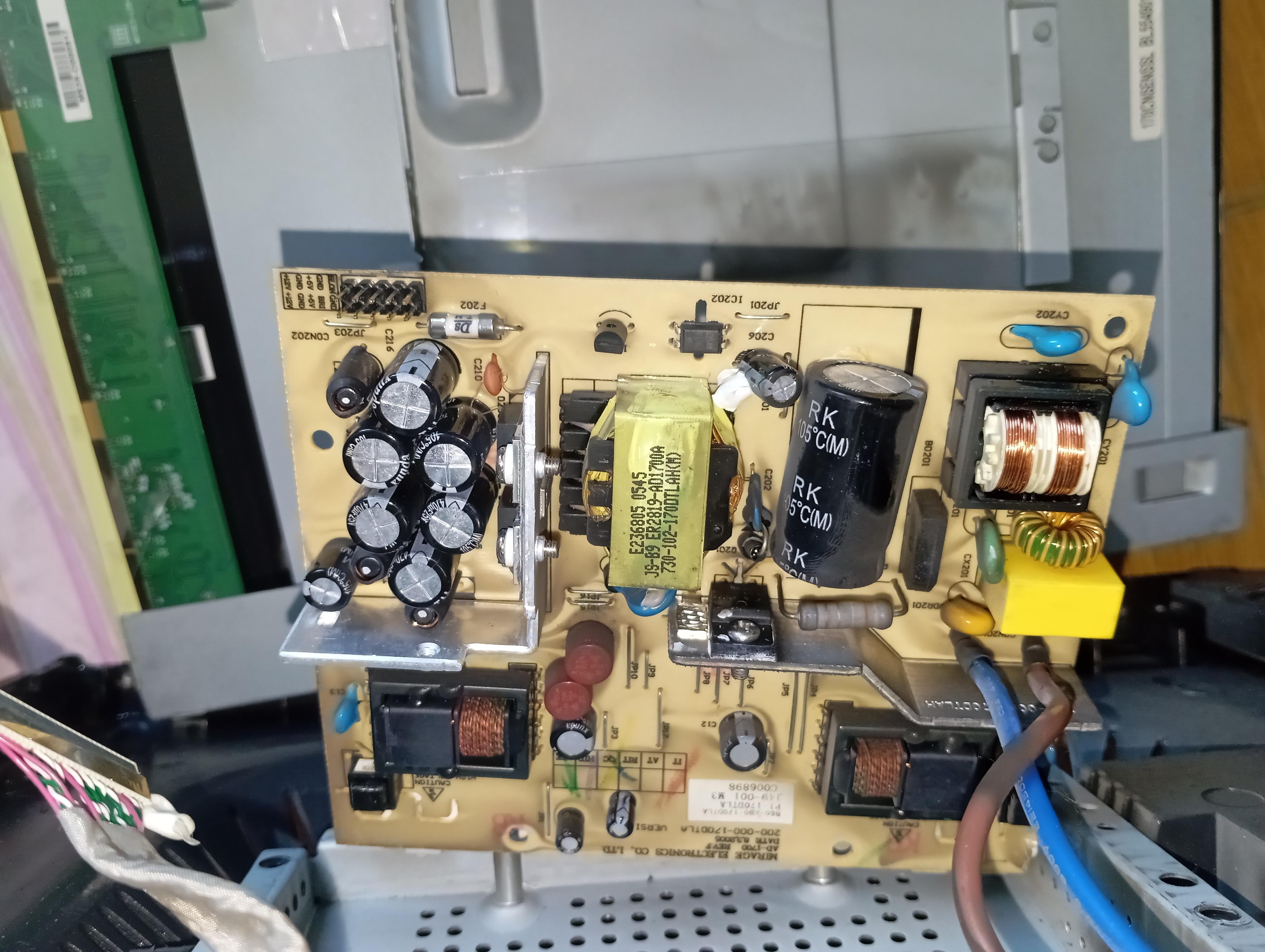

Some very quick explanation of the theory here:
