â„–3602556[Quote]

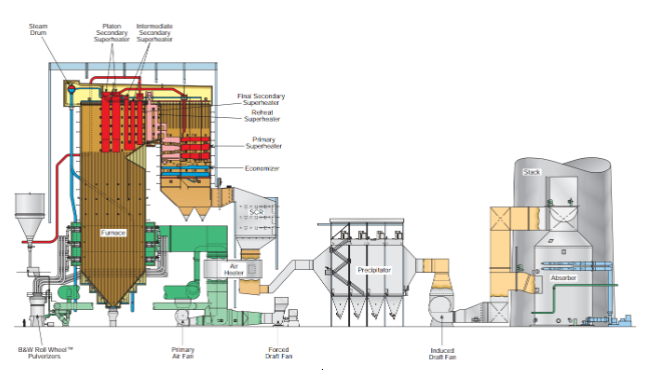

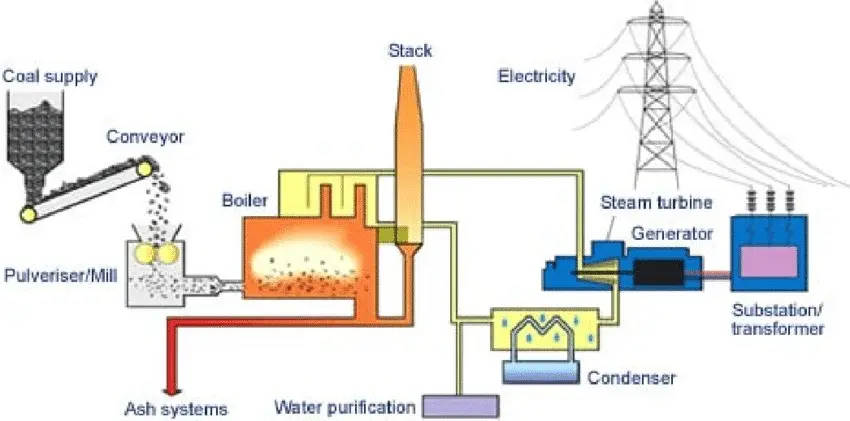

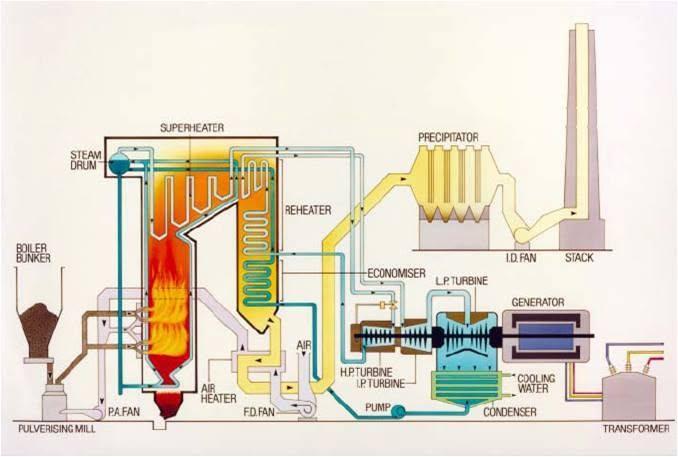

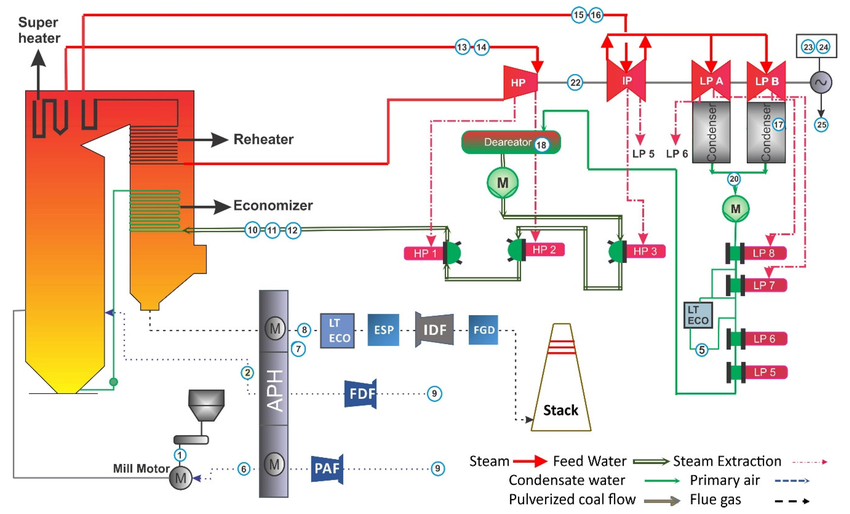

Pulverized coal-fired power plant stations represent the pinnacle of large-scale thermal energy conversion utilizing Rankine cycle thermodynamics at utility scale, where raw bituminous, subbituminous, or even lignite feedstocks are systematically processed through a meticulously engineered chain of coal handling systems, stockyard reclaimers, belt conveyors equipped with magnetic separators and metal detectors, and ultimately delivered to the bunker silos feeding multiple vertical spindle bowl mills or ball-and-race pulverizers operating at 50-60 Hz synchronous speeds with integrated classifiers calibrated to achieve 70-80% passing 200 mesh fineness, ensuring optimal particle size distribution for suspension firing while minimizing LOI in the fly ash. The pulverized fuel, dried to below 10-15% moisture content via tempered primary air supplied from the forced draft fans through the mill's hot air inlet dampers at temperatures carefully modulated between 300-400degC to avoid spontaneous combustion in the coal-air mixture, is then pneumatically conveyed via dedicated fuel pipes with riffle distributors or bifurcators to the array of low-NOx swirl burners or tangential corner-fired arrangements mounted on the furnace waterwall, where secondary and tertiary air from the air preheater and overfire air ports facilitate staged combustion to maintain flame stability, control furnace exit gas temperatures below ash softening points, and suppress thermal NOx formation while achieving carbon burnout efficiencies exceeding 99% in properly tuned units. Within the radiant furnace section of the once-through or drum-type boiler-typically a two-pass or tower configuration with membrane waterwalls constructed from high-chrome alloys in supercritical designs-the combustion process liberates thermal energy at flame temperatures approaching 1500-1700degC, transferring heat via radiation and convection to evaporate and superheat the working fluid, progressing from economizer inlet through the pendant and platen superheaters, reheater banks, and final superheater outlets reaching subcritical parameters around 540degC/170 bar, supercritical conditions at 560-600degC and 240-280 bar, or advanced ultra-supercritical regimes pushing 620-700degC at 300+ bar to drive net thermal efficiencies from the low 30s percent into the mid-to-high 40s depending on cycle configuration, condenser vacuum, and auxiliary power consumption. The high-pressure steam expands through the high-pressure, intermediate-pressure, and low-pressure steam turbine stages-often featuring double-reheat cycles with advanced blading geometries, last-stage buckets exceeding 1 meter in length for maximal exhaust annulus area, and sophisticated governing systems with turbine bypass valves for fast ramping-coupled directly to a hydrogen-cooled synchronous generator producing hundreds of megawatts at 50 or 60 Hz, while the condensed exhaust is returned via condensate polishing, LP and HP feedwater heaters, and boiler
â„–3602567[Quote]
Coal thread
â„–3602570[Quote]

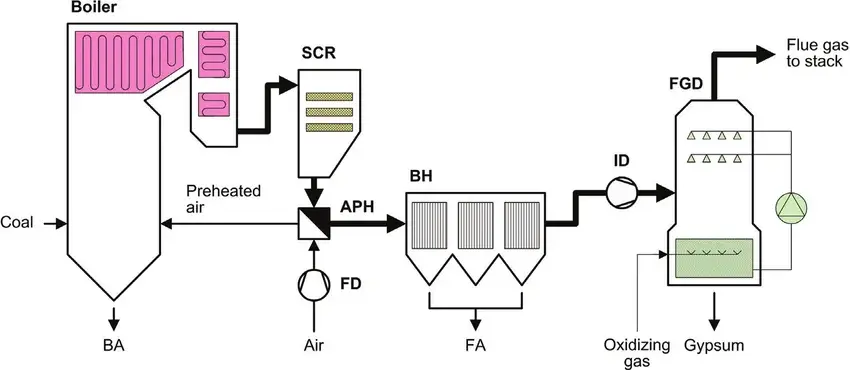

feed pumps with variable-speed drives to close the thermodynamic loop with minimal cycle losses. Post-combustion flue gas, laden with particulate matter, SO2, NOx, and trace elements, exits the economizer and air heater before entering the environmental control train consisting of selective catalytic reduction reactors with ammonia or urea injection for NOx abatement to single-digit ppm levels, hot or cold-side electrostatic precipitators or fabric filter baghouses achieving 99.9%+ particulate capture, wet or dry flue gas desulfurization scrubbers utilizing limestone or seawater for SO2 removal efficiencies above 95%, and potentially activated carbon injection for mercury control, all while managing fly ash handling via dense-phase pneumatic conveying to silos for beneficial reuse in concrete or cementitious applications and managing bottom ash from the furnace hopper through submerged chain conveyors or dry extraction systems to mitigate water usage. Auxiliary systems play critical roles in sustained operation: induced draft and forced draft fans with inlet guide vanes or variable frequency drives for precise draft control and combustion air management, sootblowers employing steam or air impulses on a programmed sequence to maintain heat transfer surfaces free of slagging and fouling particularly with high-alkali or high-chlorine coals, continuous emission monitoring systems tied into the distributed control system for real-time optimization of excess air, mill differential pressures, burner tilts, and attemperation sprays, alongside robust vibration monitoring on rotating equipment, tube leak detection via acoustic or mass balance methods, and advanced process controls incorporating model predictive algorithms for load following in an increasingly renewables-integrated grid. From coal yard dust suppression and spontaneous combustion mitigation protocols to the intricate metallurgy demands of austenitic stainless steels, nickel-based superalloys like Inconel 740 or Sanicro 25 in the highest-temperature steam circuits of ultra-supercritical units, to the precise balancing of mill throughput against boiler master demand signals, these pulverized coal stations embody decades of evolutionary engineering refinements that have elevated specific coal consumption metrics, reduced specific emissions per MWh, and enabled reliable dispatchable generation at scales from 300 MW single units up to multi-gigawatt complexes, all while navigating the complexities of fuel variability, ash chemistry impacts on boiler slagging and fouling indices, and the relentless push toward higher steam parameters limited primarily by creep rupture strength and fire-side corrosion resistance of pressure part materials in the hostile high-temperature oxidative and sulfidizing environment.
â„–3602575[Quote]
throw kikes in the boiler
